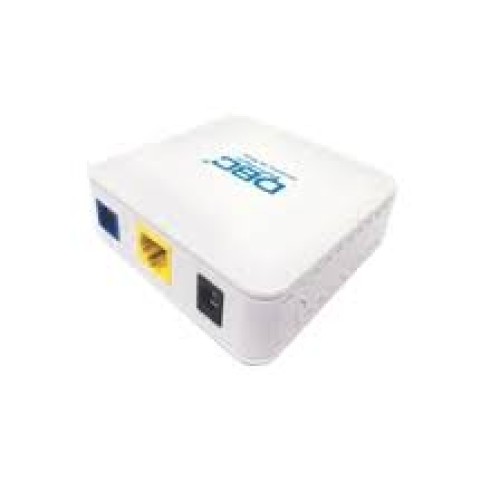

DBC 1 GE EPON ONU

• Dimension 82mm×82mm×25m(L×W×H)
• Net weight 0.085Kg

Operating condition

• Operating temp: -30 ~ +70°C
• Operating humidity: 10 ~ 90% (non-condensed)

Storing condition

• Storing temp: -30 ~ +70°C

• Storing humidity: 10 ~ 90% (non-condensed)

• Poweradapter DC 12V, 0.5A, external AC-DC power adaptor
• Power supply ≤4W

Interfaces 1GE

Indicators SYS, LINK/ACT, REG

• SC single mode, SC/UPC connector

• TX optical power: 0~+4dBm

• RX sensitivity: -27dBm

• Overload optical power: -3dBm(EPON) or -

8dBm(GPON)

• Transmission distance: 20KM

• Wavelength: TX 1310nm, RX1490nm

• 1 XPON port(EPON PX20+ & GPON Class B+)

XPON Mode Dual mode,Auto-access to EPON/GPON OLT

Uplink Mode Bridging and Routing Mode

Abnormal

protection Detecting Rogue ONU, Hardware Dying Gasp

Firewall DDOS, Filtering Based on ACL/MAC/URL

• Support MPCP discover&register

• Support authentication Mac/Loid/Mac+Loid

• Support Triple Churning

• Support DBA bandwidth

• Support auto-detecting, auto-configuration,

and auto firmware upgrade

• Support SN/Psw/Loid/Loid+Psw

authentication
